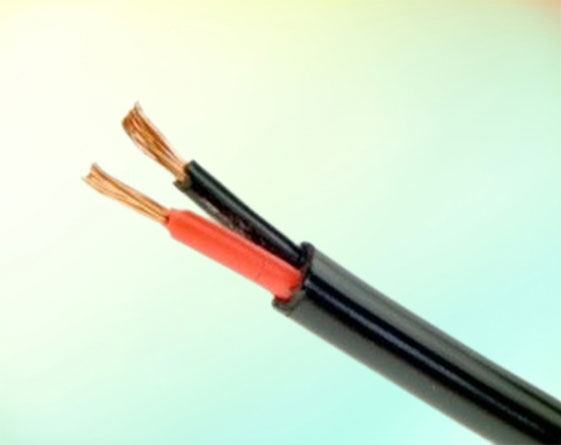

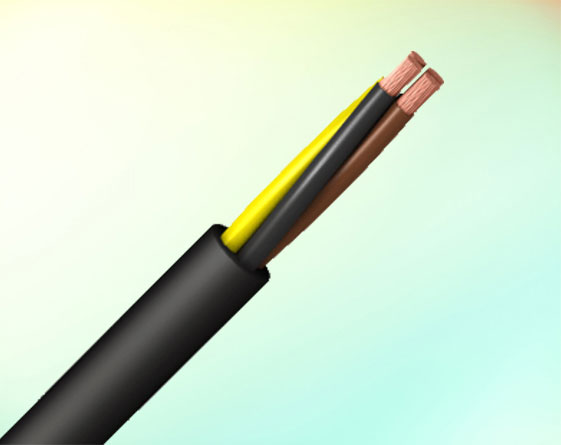

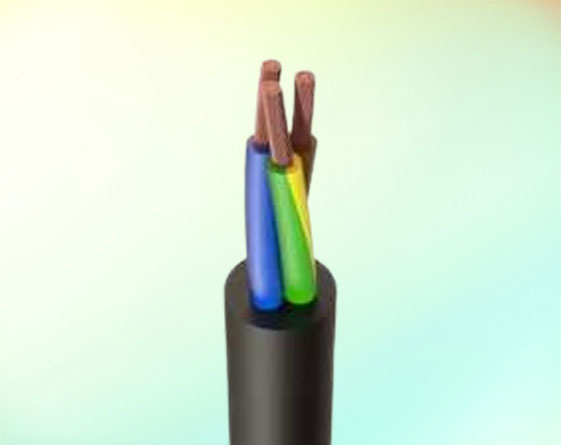

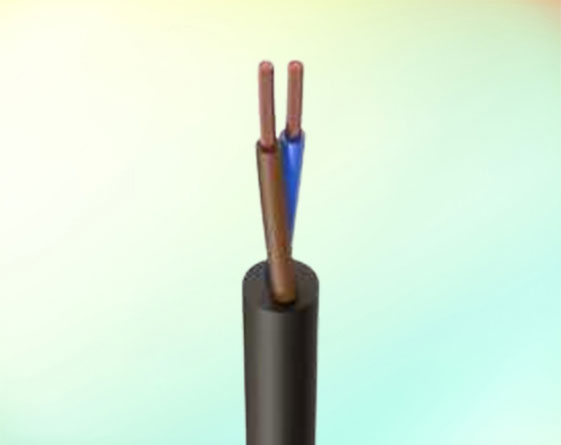

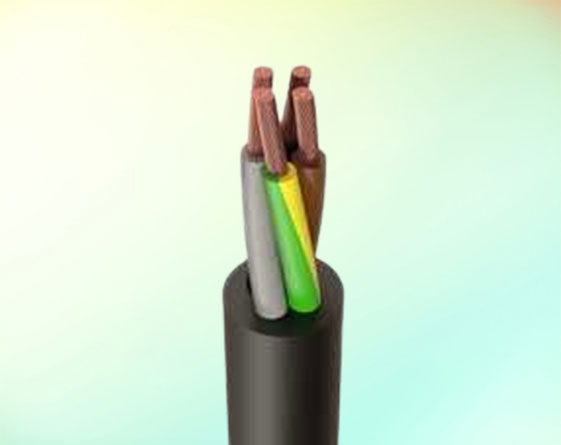

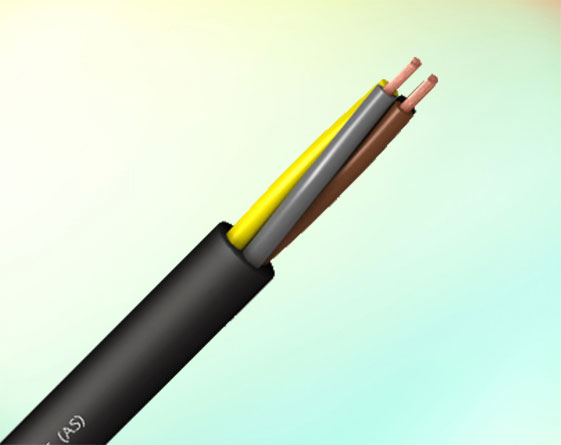

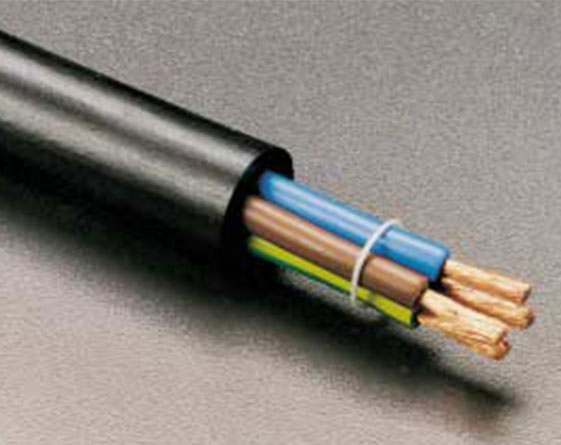

Multi Core Flexible Cables

Make An Inquiry

Construction

Conductor: High purity electrolytic grade bright annealed flexible bunched bare copper conductor according to international standards like IS-8130, BS-6360, IEC-228 & VDE-0295.
Insulation: Specially developed dielectric grade PVC Compound.
Colour: Grey, Red, Blue, Black, other colors as per requirements.

Applications

Wiring of panels for use in high ambient temperatures.

Sheath

Specially developed tough and flexible PVC Compound.

Standards

IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32-201, French Standard 32-102-16

Working Voltage

450/ 750 V, 600/ 1000 V, 650/1100 V

Test Voltage

3000 V

Temperature

-15°C to 70°C

Multi Core Flexible Cable Technical Data

Cross Section Area (Nom.) SQ.MM	Nos./ Size of Wire NO./MM	Insulation Thickness (Nom.) MM	Sheath Thickness (MM)				Overall Diameter (MM)
Cross Section Area (Nom.) SQ.MM	Nos./ Size of Wire NO./MM	Insulation Thickness (Nom.) MM	2 Core	3 Core	4 Core	5 Core	2 Core	3 Core	4 Core	5 Core
0.5	16/.2	0.6	1.0	1.0	1.0	1.0	6.6	7.0	7.6	8.3
0.75	24/.2	0.6	1.0	1.0	1.0	1.0	7.0	7.6	8.3	9.1
1	14/.3	0.6	1.0	1.0	1.0	1.0	7.5	7.9	8.6	9.6
1.5	22/.3	0.6	1.0	1.0	1.1	1.1	8.0	8.5	9.5	10.3
2.5	36/.3	0.7	1.1	1.1	1.1	1.1	9.5	10.2	11.1	11.7
4	56/.3	0.8	1.1	1.1	1.1	1.1	11.0	11.7	12.8	13.95
6	84/.3	0.8	—	1.2	1.5	—	—	14.05	15.8	—
10	140/.3	1	—	1.3	1.5	—	—	18.00	19.00	—
16	226/.3	1	—	1.3	1.5	—	—	20.60	23.00	—
25	354/.3	1.2	—	1.5	1.6	—	—	25.12	28.00	—
35	495/.3	1.2	—	1.6	1.8	—	—	28.40	31.45	—
50	703/.3	1.4	—	1.6	1.8	—	—	32.87	36.90	—
70	360/.5	1.4	—	1.8	2.0	—	—	37.78	41.95	—
95	475/.5	1.6	—	1.8	2.0	—	—	43.55	48.80	—
120	608/.5	1.6	—	2.0	2.0	—	—	47.95	53.30	—

Note: Insulation thickness, Sheath thickness and overall dimensions are nominal values. The number of wires is approximate and strand diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per IS 8130/1984, BS-6360, IEC-60228 & VDE-0295.
