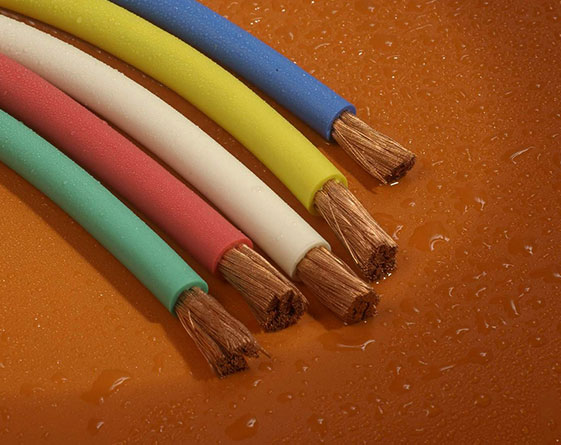

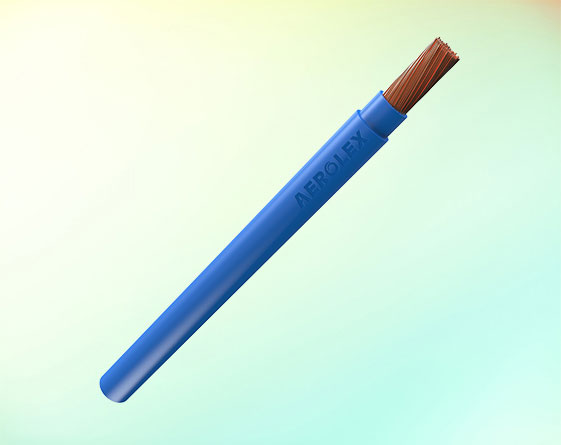

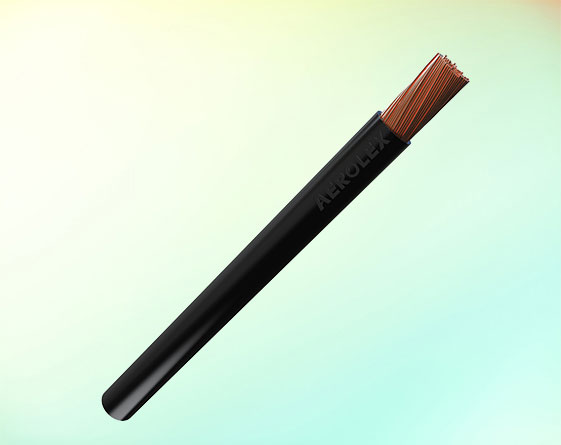

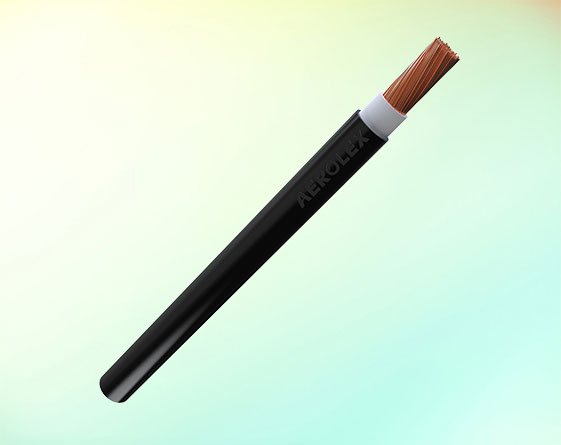

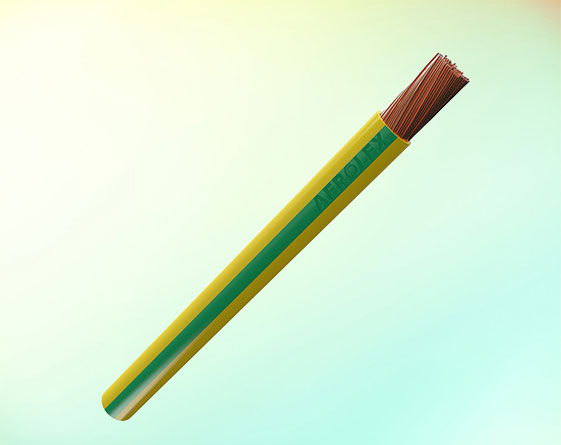

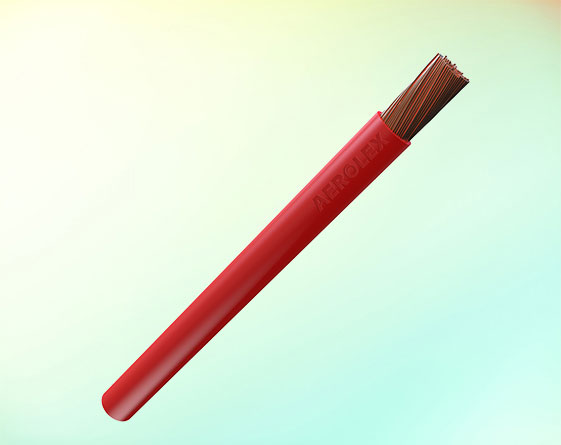

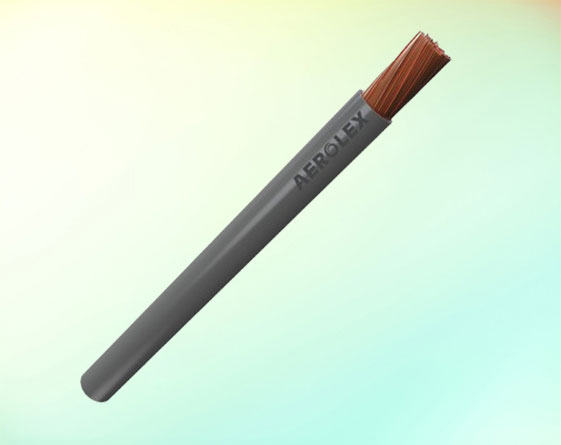

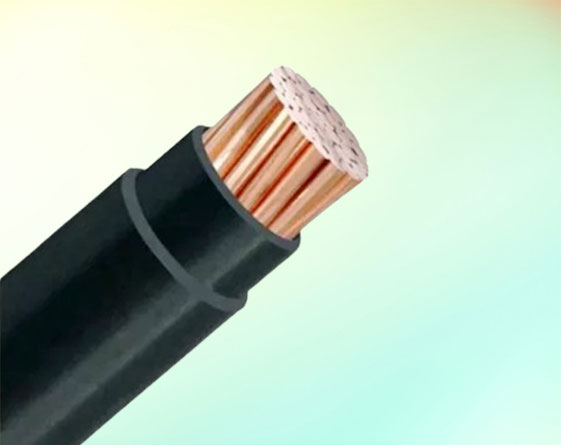

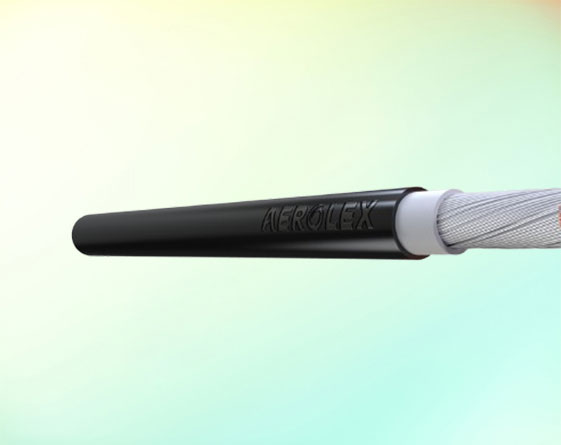

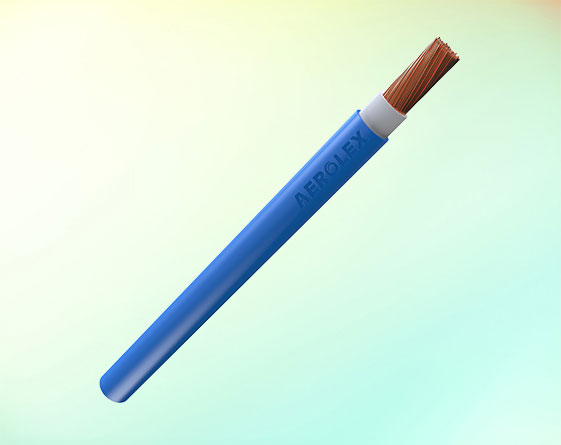

Single Core Flexible Cable

Make An Inquiry

Specifications

Conductor: High purity electrolytic grade bright annealed flexible bunched bare copper conductor according to international standards like IS-8130, BS-6360, IEC-228 & VDE-0295.
Insulation: Specially developed dielectric grade PVC Compound.

Standard Colour

Grey, Red, Blue, Black, other colors as per requirements.

Applications

Wiring of panels for use in high ambient temperatures.

Standards

IS 694, BS 6500, IEC 60227, CEI 20-20, VDE 0281, SABS 1574, AS 3191, AS/NZS 5000.1, HD 21.1, NF C 32-201, French Standard 32-102-16

Working Voltage

450/ 750 V, 600/ 1000 V, 650/1100 V

Test Voltage

3000 V

Temperature

-15°C to 70°C

Single Core Flexible Cable Technical Data

Cross Section Area (Nom.) SQ.MM	Nos./ Size of Wire NO./MM	Insulation Thickness (Nom.) MM	Overall Diameter (Approx.) MM	Conductor Resistance at 20°C (Max.) OHM/KM	Current Carrying Capacity AMPS
0.5	16/.2	0.6	2.2	39	4
0.75	24/.2	0.6	2.5	26	7
1	14/.3	0.6	2.6	18.1	11
1.5	22/.3	0.6	3	12.1	14
2.5	36/.3	0.7	3.6	7.41	19
4	56/.3	0.8	4.3	4.95	26
6	84/.3	0.8	5.1	3.3	31
10	140/.3	1	6.6	1.91	42
16	226/.3	1	7.8	1.21	57
25	354/.3	1.2	9.7	0.78	71
35	495/.3	1.2	11	0.554	91
50	703/.3	1.4	13.2	0.386	120
70	360/.5	1.4	15.3	0.272	165
95	475/.5	1.6	17.9	0.206	200
120	608/.5	1.6	19.4	0.161	225
150	750/0.5	1.8	21.9	0.129	250
185	925/0.5	2	24.5	0.106	300
240	1221/0.5	2.2	28	0.0801	425

Note: Insulation thickness, Sheath thickness and overall dimensions are nominal values. The number of wires is approximate and strand diameter is nominal; they shall be such as to satisfy the requirements of conductor resistance as per IS 8130/1984, BS-6360, IEC-60228 & VDE-0295.
